Norco Search A GRX

Norco Search A GRX
$1,999.00
Color: Ice White
Size: Select size
Wheel Size: 700c
Please select options Unavailable

Details

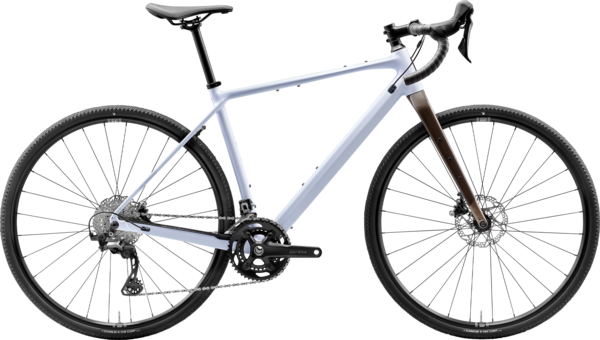

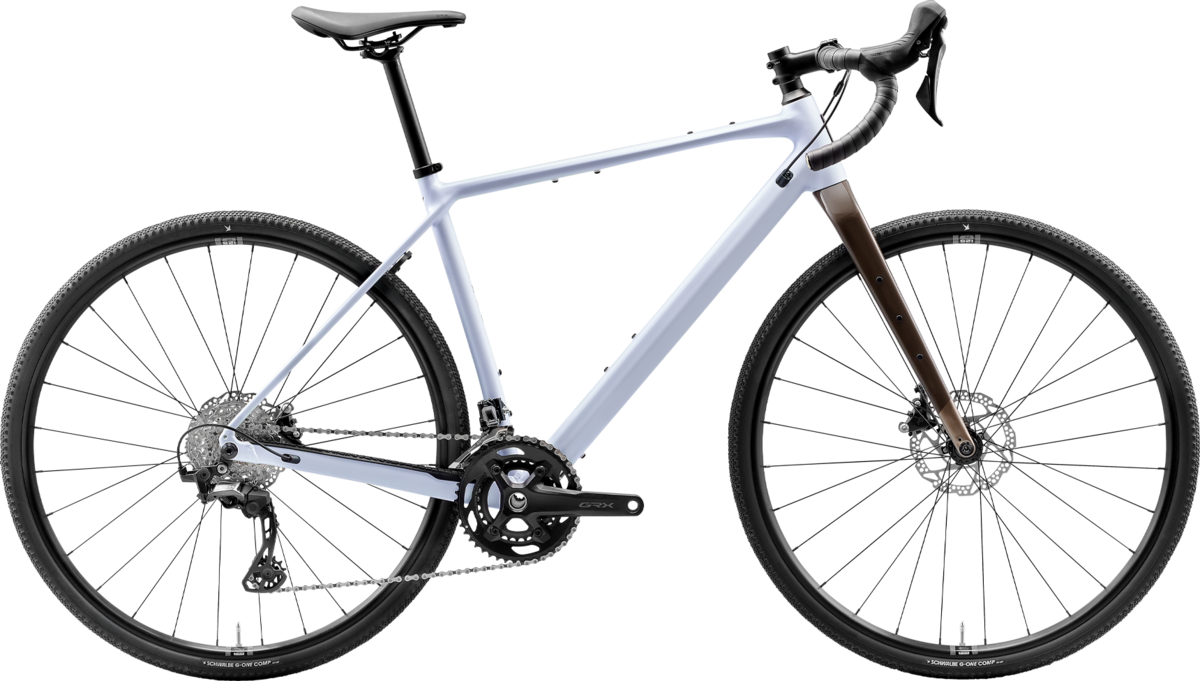

2025 Search A GRX

Singletrack, dirt roads, city parks, even the most remote backcountry trails – are you roaming or racing? Search A GRX is ready for your next adventure with modern gravel geo, a lightweight aluminum frame, carbon fork with adventure mounts, Shimano GRX 2x12 drivetrain, tire clearance up to 50c, and full-coverage fender, toptube bag, and water bottle mounts.

A progressive, modern gravel bike.

Search A GRX features new-school gravel geo fit for a fast, lively, confident ride on any terrain. With a taller headtube, slacker head angle, and longer reach, it’s more stable on rough terrain and ready to tackle steeper grades with ease.

The updated, longer fork adds stability and new-school geometry is compatible with suspension forks if you want to add some extra cushion. The frame is UDH compatible and supports fitments for all the latest wide range 1x drivetrain technologies.

Fully guided cable routing and a fully threaded BSA bottom bracket makes maintenance a breeze.

Details:

Modern Gravel Geo
Progressive and confidence-inspiring.
Search Aluminum features new-school gravel geo fit for a fast, lively, confident ride on any terrain. With a taller headtube, slacker head angle, and longer reach, it’s more stable on rough terrain and ready to tackle steeper grades with ease.

Carbon Fork, Suspension Ready
A lightweight frame with options.
The updated, longer fork adds stability and is compatible with suspension forks if you want to add some extra cushion. The frame is UDH compatible and supports fitments for all the latest wide range 1x drivetrain technologies.

Simplified Maintenance
Updated features for easy wrenching.
Fully guided cable routing and a fully threaded BSA bottom bracket makes maintenance a breeze and cuts down on the amount of time your bike is in the shop. Simply push the cable in one side, and it comes out the other in seconds.

Wider Tire Clearance
More traction, when you want it.
With a huge tire clearance, Search Carbon is spec’d with 45c tires and accommodates up to 700 x 50c to fit with loads of mud and gravel on even the gnarliest roads. A custom integrated, low-profile front fender will keep you clean and clear.

Adventure-Ready Mounts
Carry everything you need.
Search Aluminum has integrated mounts for full-coverage fenders and adventure-ready accessories. When the world gets wet commuting or training, throw on full-coverage fenders with your fav 45c’s. Get ready for epic rides with a lower top tube mount, adventure mounts on the fork, and extra water bottle mounts for long haul journeys.

Built To Last, Guaranteed
No Other Way Limited Lifetime Warranty.
Search Aluminum’s durable frame design, hardware, and component decisions have been made specifically to keep you rolling for longer. Accidents can happen, and when they do, our No Other Way Limited Lifetime Guarantee is our promise to get you back out there as soon as possible.

Sizes:
Frame Size54321
Wheel Size 700c 700c 700c 700c 700c
Reach (mm) 445 430 415 400 385
Stack (mm) 634 611 587 564 554
Head Tube Angle 69.5° 69.5° 69.5° 69.5° 69.5°
Fork Offset (mm) 51 51 51 51 51
Seat Tube Length (mm) 580 545 510 475 440
Effective Seat Tube Angle 73.5° 73.75° 74° 74.25° 74.5°
Rear Centre Length (mm) 430 430 427.5 425 425
Bottom Bracket Drop (mm) 75 75 75 75 75
Bottom Bracket Height (mm) 285 285 285 285 285
Horizontal Top Tube (mm) 633 608 583 559 539
Wheelbase (mm) 1132 1108 1082 1056 1037
Standover (mm) 824 791 758 725 691
Head Tube Length (mm) 185 160 135 110 100
Trail (mm) 80 80 80 80 80
Maximum Post Insertion (mm) 290 290 290 240 210
Stem Length (mm) 70 70 70 70 70
Crank Length (mm) 172.5 172.5 170 170 165
Sizes:
Frame SizeRider Height (cm)Rider Height (in)
1 150 - 165 5'0" - 5'5"
2 162 - 172 5'4" - 5'8"
3 170 - 180 5'7" - 5'11"
4 180 - 190 5'10" - 6'2"
5 185 - 200 6'1" - 6'6"

Specs

Frame Search Butted Aluminum w/Smooth Welds
Fork Search Carbon, 51mm Offset, 12x100mm TA
Rims Alloy Tubeless Pinned, 23mm ID, 28H
Hubs Front: Shimano HB-TC500, 12x100mm, Sealed Bearing, 28H, C-lock
Rear: "Shimano FH-TC500, 12x142mm, Sealed Bearing, Microspline, 28H, C-lock "
Spokes Sapim Leader 2.0mm, Brass Nipples
Tires Schwalbe G-One, 700x40c All Round Perf Race Guard
Bottom Bracket Shimano SM-BBR60, Threaded, HOLLOWTECH II ,68/70 mm
Crankset "Shimano GRX FC-RX610, 46-30T, 2x12spd, BSA 24mm , S1/2/3/4=170; S5=172.5 "
Shifters Rear: Shimano GRX ST-RX610, 2x
Rear: Shimano GRX ST-RX610, 12sp
Front Derailleur Shimano GRX FD-RX820, Braze On, Down Swing, 2x
Rear Derailleur Shimano GRX RD-RX822, 12sp
Cassette/Freewheel Shimano CS-HG710, 11-36T, 12sp
Chain KMC X12, 12sp
Brakes Shimano BR-RX400, Resin pads
Rotors Shimano SM-RT54, 160mm, C-lock
Brake Levers Shimano GRX ST-RX610
Handlebars Norco Super Flare Aluminum, 16 Deg Flare, S1/2=40cm; S3=42cm; S4=44cm; S5=46cm
Tape/Grips Griptacular Shockproof Tape, 3mm
Stem Norco SL Aluminum, 70mm length, 31.8mm Clamp
Headset FSA Integrated Sealed Bearings No. 42 ; Tapered 1-1/8" - 1.5" ( IS42/28.6 | IS52/40 )
Seatpost Norco Aluminum, 12mm offset, 27.2mm ID, 350mm Length
Saddle Selle Royale SRX Gravel, 148mm
Pedals Sold Separately

* Subject to change without notice.

Videos

Part Numbers

Option UPC MPN Store SKU
Ice White / SZ3 / 700c 058817724442 0406015856 210000017491
Ice White / SZ4 / 700c 058817724459 0406015857 210000017492
