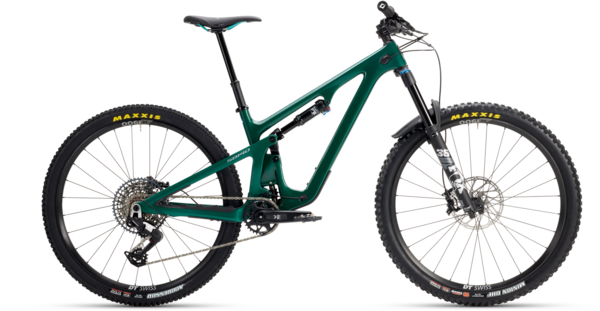

Yeti Cycles SB140 C2 EAGLE 90 Transmission

Yeti Cycles SB140 C2 EAGLE 90 Transmission
$5,500.00
Color: Emerald
Size: Large
Wheel Size: 29-Inch
Please select options Unavailable

Details

Meet the bike in between nothing. Leaving no rider wanting. Master of the climb, the bomb, the rail, and the air. The utterly unequivocal. The rule crusher. The trend buster. No rig can rule all, but this one can absolutely rule.

The mountain bike.

This is the mountain bike you reach for when the trail is untamed and unrelenting, in both directions. “Trail bike” is a term that gets used pretty liberally in the industry, so we designed the SB140 to be even better suited to go deep and find out what’s on the other side.

- Internally routed cable tubes with secure closures at entry and exit points eliminate rattles and cable rub. Whether running a mechanical drivetrain and dropper or a wireless setup, cable management is intuitively easy and quiet.

- Threaded aluminum bottom bracket shell with integrated ISCG-05 tabs. This critical drivetrain interface is now more durable, cleaner, and easier to service.

- If a hanger bending crash occurs, the new Yeti models use the Universal Derailleur Hanger (UDH) interface — the industry standard mount for a rear derailleur. The UDH is available in nearly any bike shop, Yeti dealer or not.

MeasurementSmallMediumLargeX-LargeXX-Large
Seat Tube Length (in/mm) 14.4 / 366 15.7 / 399 17.3 / 439 18.5 / 470 19.1 / 485
Effective Top Tube Length (in/mm) 22.5 / 572 23.7 / 602 24.5 / 622 25.6 / 650 26.4 / 671
Headtube Angle (degrees) 65.4° 65.4° 65.4° 65.4° 65.4°
Effective Seat Tube Angle (degrees) 77.5° 77.5° 77.5° 77.4° 77.4°
Actual Seat Tube Angle (degrees) 72.2° 72.6° 72.8° 73.2° 73.7°
Chainstay Length (in/mm) 17.2 / 437 17.2 / 437 17.3 / 439 17.4 / 442 17.5 / 445
Wheelbase (in/mm) 46.6 / 1184 47.9 / 1217 48.9 / 1242 50.1 / 1273 51.2 / 1301
Estimated BB Height (in/mm) 13.3 / 338 13.3 / 338 13.3 / 338 13.3 / 338 13.3 / 338
Standover (in/mm) 28.4 / 722 28.7 / 729 28.9 / 734 28.9 / 734 29.1 / 739
Headtube Length (in/mm) 3.6 / 91 3.7 / 94 4.0 / 102 4.4 / 112 5.3 / 135
Fork Axle to Crown (in/mm) 22.2 / 564 22.2 / 564 22.2 / 564 22.2 / 564 22.2 / 564
Fork Offset (in/mm) 1.7 / 43 1.7 / 43 1.7 / 43 1.7 / 43 1.7 / 43
Stack (in/mm) 24.2 / 615 24.3 / 617 24.5 / 622 24.9 / 632 25.6 / 650
Reach (in/mm) 17.1 / 435 18.3 / 465 19.1 / 485 20.1 / 510 20.7 / 526
Front Center (in/mm) 29.5 / 749 30.7 / 780 31.6 / 803 32.7 / 831 33.7 / 856
Vertical Fork Travel (in/mm) 5.4 / 137 5.4 / 137 5.4 / 137 5.4 / 137 5.4 / 137
SizeHeight Range (ft/in)Height Range (cm)
Small 5’1” – 5’7” 155 – 170 cm
Medium 5’5” – 5’11” 165 – 180 cm
Large 5’10” – 6’3” 178 – 190 cm
X-Large 6’1” – 6’7” 185 – 200 cm
XX-Large 6’5” – 6’11” 196 – 211 cm

Specs

Frame C/Series carbon fiber frame, Switch Infinity suspension technology, Threaded BB, internally tunneled cable routing, 148mm x 12mm BOOST dropouts, sealed enduro max pivot bearings, Universal derailleur hanger (UDH), and axle.
Fork FOX PERFORMANCE 36/150MM
Rear Shock FOX PERFORMANCE FLOAT DPS
Wheels DT SWISS M1900 30MM
Tires Front: MAXXIS MINION DHF 2.5 EXO Rear: MAXXIS AGGRESSOR 2.3 EXO
Bottom Bracket SRAM DUB BSA 73
Crankset SRAM EAGLE 90 TRANSMISSION 30T 170MM
Shifters SRAM EAGLE 90 TRANSMISSION
Rear Derailleur SRAM EAGLE 90 TRANSMISSION
Cassette/Freewheel SRAM GX EAGLE TRANSMISSION 10-52
Chain SRAM GX EAGLE TRANSMISSION FLATTOP
Brakes SRAM G2 R
Rotors SRAM CENTERLINE 200/SRAM CENTERLINE 180
Handlebars BURGTEC RIDE WIDE ALLOY ENDURO 35X780MM
Tape/Grips ODI ELITE PRO
Stem BURGTEC ENDURO MK3 35X50MM
Headset CANE CREEK 40 INTEGRATED
Seatpost ONEUP DROPPER POST 31.6MM / SM: 150MM, MD: 180MM, LG: 210MM, XL-XXL: 240MM
Saddle WTB SILVERADO CUSTOM

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Emerald / Large / 29-Inch 786044596449 B26149CLGPEMPAC026500 210000017431
