Details
Forget the numbers. Mute the speculation. Let the other guys invent cute alternatives for "cross country." Steer clear of pigeon holes and limiting beliefs. Strap on your blinders and go get lost. Then decide what the SB120 means to you. And you alone. Definition ready.
Size | X-Small | Small | Medium | Large | X-Large | XX-Large |
---|---|---|---|---|---|---|
Wheel Size (IN) | 29 | 29 | 29 | 29 | 29 | 29 |
Reach (mm) | 395 | 425 | 455 | 475 | 500 | 515 |
Top Tube Length [Effective] (mm) | 540 | 571 | 603 | 625 | 652 | 672 |
Stack (mm) | 604 | 610 | 615 | 625 | 635 | 655 |
Head Tube Length (mm) | 92 | 98 | 104 | 115 | 126 | 147 |
Seat Tube Length (mm) | 345 | 365 | 400 | 440 | 470 | 485 |
Seat Tube Angle [Effective] | 76.5° | 76.5° | 76.5° | 76.5° | 76.5° | 76.5° |
Seat Tube Angle [Actual] | 71.1° | 71.5° | 71.9° | 72.3° | 72.7° | 73.2° |
Head Tube Angle | 66.5° | 66.5° | 66.5° | 66.5° | 66.5° | 66.5° |
BB Height [Estimated] (mm) | 335 | 335 | 335 | 335 | 335 | 335 |
Front Center (mm) | 689 | 722 | 754 | 778 | 808 | 831 |
Chainstay Length (mm) | 433 | 435 | 437 | 439 | 441 | 443 |
Wheelbase (mm) | 1122 | 1157 | 1191 | 1217 | 1249 | 1274 |
Standover (mm) | 699 | 709 | 714 | 718 | 720 | 725 |
Fork [Axle-To-Crown] (mm) | 544 | 544 | 544 | 544 | 544 | 544 |
Fork Travel (mm) | 130 | 130 | 130 | 130 | 130 | 130 |
Vertical Fork Travel (mm) | 119 | 119 | 119 | 119 | 119 | 119 |
Fork Offset (mm) | 44 | 44 | 44 | 44 | 44 | 44 |
Specs
Frame | C/Series carbon fiber |
---|---|
Fork | Fox Factory |
Rear Shock | Fox Factory |
Wheels | CRANK BROTHERS SYSTHESIS ENDURO 30MM |
Tires | MAXXIS MINION DHF 2.5 EXO / MAXXIS AGGRESSOR 2.3 EXO |
Bottom Bracket | SHIMANO XT BB 73 |
Crankset | SHIMANO SLX 30T 170MM |
Shifters | SHIMANO XT |
Rear Derailleur | SHIMANO SLX |
Cassette/Freewheel | SHIMANO SLX 10-51 |
Chain | SHIMANO SLX |
Brakes | SHIMANO SLX 4 PISTON |
Rotors | SHIMANO 180/SHIMANO 180 |
Handlebars | BURGTEC RIDE WIDE ALLOY ENDURO 35X780MM |
Tape/Grips | ODI ELITE PRO |
Stem | BURGTEC ENDURO MK3 35X50MM |
Headset | CANE CREEK 40 INTEGRATED |
Seatpost | ONEUP DROPPER POST 31.6MM / XS-SM: 150MM, MD: 180MM, LG-XXL: 210MM |
Saddle | SILVERADO CUSTOM |
* Subject to change without notice.
Part Numbers
Option | MPN | Store SKU |
---|---|---|

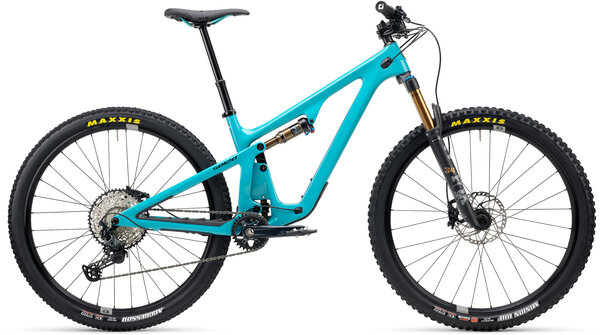

Turquoise / Large | B23120CLGPTUFAC014300 | 210000015513 |
